Davide Angelocola

A Tour of the Vortex Columnar Format: using vortex-java

11 October 2026

Vortex is a columnar file format whose compressor picks an encoding per column and per chunk. It follows the BtrBlocks paper1: a handful of simple encodings, combined recursively, instead of one clever encoding. This is a tour of the format using the vortex-java library on a public CSV file. It is for someone new to Vortex: what went in, how it is laid out, and which encoding each column ended up with, and why. If you would rather start with pictures, SpiralDB’s Vortex: One Format for Any Shape animates the dictionary, run-end and bit-packing encodings used below, and how they cascade.

The input

Binance publishes its market data as plain files. I took the 1-minute candlesticks (“klines”) for 8 pairs (BTC, ETH, BNB, SOL, XRP, ADA, DOGE, LTC against USDT) for all of 2024 and added the pair name as a first column. The first rows:

symbol,open_time,open,high,low,close,volume,close_time,quote_volume,trades,taker_base_volume,taker_quote_volume,ignore
ADAUSDT,1704067200000,0.59390000,0.59410000,0.59320000,0.59400000,104974.20000000,1704067259999,62312.86830000,184,62945.40000000,37368.88100000,0
ADAUSDT,1704067260000,0.59400000,0.59490000,0.59390000,0.59470000,38140.50000000,1704067319999,22675.04514000,87,23698.80000000,14088.40445000,0
ADAUSDT,1704067320000,0.59480000,0.59510000,0.59470000,0.59480000,69129.00000000,1704067379999,41121.03314000,121,47191.90000000,28073.20516000,0

Each row is one minute of trading for one pair: the first and last time (open_time and close_time, in milliseconds since 1970), the open, high, low and close price, how much was traded, and a few counters. The numbers are written as fixed-width text (0.59390000), part of why a CSV is so wasteful.

4,216,320 rows, 13 columns, 633 MB of CSV. It mixes much of what a real table has: a low-cardinality string, timestamps in a fixed rhythm, prices with a few decimals, mostly high-entropy volumes, a counter, and a column that is always zero. Rows are ordered by pair, then time.

To reproduce it:

for s in BTCUSDT ETHUSDT ...; do for m in 01 ... 12; do
  curl -O https://data.binance.vision/data/spot/monthly/klines/$s/1m/$s-1m-2024-$m.zip
done; done
# unzip, prepend the symbol column and a header line -> eod.csv

java -jar vortex-cli-all.jar import eod.csv eod.vortex
java -jar vortex-cli-all.jar inspect eod.vortex

The result

  Size Time
CSV 632.9 MB –
CSV + gzip -6 175.6 MB 13.4 s
CSV + zstd -3 187.0 MB 1.5 s
CSV + zstd -19 140.4 MB 188.8 s
Vortex 127.2 MB 1.0 s

The times are medians of three runs inside one JVM, with JVM start-up and CSV parsing excluded (the Vortex time is encode and write only). Vortex beat even zstd -19 by 9% while taking about a second instead of three minutes (189x faster), and it did so with no general-purpose compression at all: every byte is an encoding that knows something about the data. The file is also still columnar and random-access, so a reader can fetch one column, or skip chunks by their min/max statistics, without decompressing the whole thing. A compressed CSV can do neither.

Two caveats on the numbers. The size and timing tables use the library defaults, which write one global dictionary for symbol. The CLI’s import turns the global dictionary off, so its file is 127.1 MB and symbol takes 17 KB instead of 4 KB; the per-column table, the inspect report and the screenshot below come from that file. And inspect reports binary megabytes (1 MB = 1,048,576 bytes): the same 127.1 MB file shows up there as 121.2 MB.

With --compact the file gets smaller still, to 95.2 MB; see “What --compact changes” below.

How the file is laid out

Each column becomes a stack of layouts:

Struct            one child per column
 └ Zoned          min/max/null-count statistics for every 8,192 rows (zone maps)
    └ Chunked     ~1 MiB chunks: 131,072 rows of an 8-byte column, 49,152 of the string
       └ Flat     one encoded segment each

The compressor works on one chunk at a time, so one column can use different encodings in different places. That matters here: a chunk inside one trading pair looks nothing like a chunk that straddles two.

What each column became

Column CSV Vortex What it is Encoding of a typical chunk
symbol 34.3 MB 17 KB 8 distinct strings, sorted constant (one pair per chunk); dict + runend where two pairs meet
open_time 59.0 MB 4.0 MB one row per minute sequence: two numbers per chunk
close_time 59.0 MB 4.0 MB open_time + 59,999 sequence
open high low close 52.7 MB each 8.3 MB each prices, 2 to 8 decimals alp → for → bitpacked
volume 58.3 MB 13.4 MB traded amount alp with patches
taker_base_volume 56.8 MB 12.9 MB same family alp
quote_volume, taker_quote_volume 65.5 / 63.9 MB 27.1 / 25.7 MB amount × price, long decimals alprd, or alp where it fits
trades 16.6 MB 6.7 MB trade count bitpacked with patches
ignore 8.4 MB 5 KB always 0 constant

A tour of the encodings:

Encodings that compose

None of these encodings is clever on its own. The savings come from stacking them, the idea Vortex takes from BtrBlocks1. For each chunk the compressor tries every candidate encoding on a small sample and keeps the best. It then treats whatever the winner produces (ALP’s integers, a dictionary’s codes and values) as a new column and runs the same competition on it, down to a configurable depth. The Rust crate that does this is vortex-btrblocks.

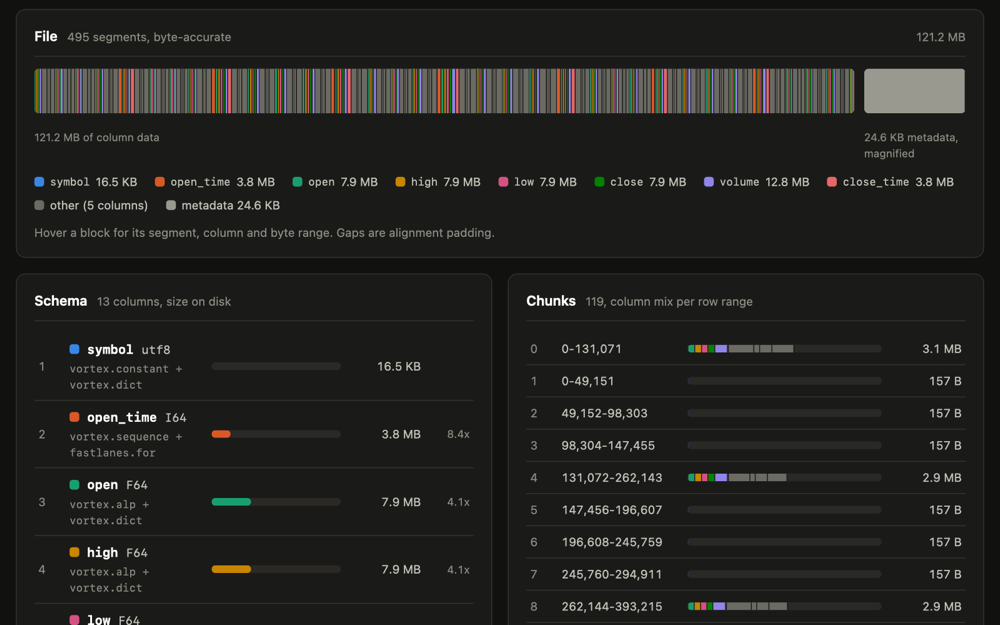

You can read the recursion in the tree that inspect prints. For a browsable version, inspect --html writes a single self-contained page (no scripts, no CDN) showing where each column’s bytes sit in the file, what share of the file each column costs, and the per-chunk row ranges, min/max and sizes behind those totals:

java -jar vortex-cli-all.jar inspect --html eod.vortex > report.html

The report for this very file is here: eod.vortex inspect report.

inspect --html report of eod.vortex

One open price chunk:

alp                    decimals -> integers, plus exponents
 └ for                 subtract the chunk minimum
    └ bitpacked        21 bits per value

and a symbol chunk where one pair ends and the next begins:

dict                   8 distinct strings, stored once
 ├ codes:  runend      the same code repeats thousands of times
 └ values: varbin      the strings themselves

Nobody told the compressor any of this: there is no schema hint saying “this column is a timestamp” or “these are prices”. Each decision is a measurement on a sample, and each level only has to be good at one small thing. When you do know the shape in advance, vortex-java lets you say so per column with WriteOptions#withColumnEncoding, restricting the candidates (for example ColumnEncoding.candidates(VORTEX_ALP, FASTLANES_FOR, FASTLANES_BITPACKED) for a fixed-precision decimal). The library documents this as skipping candidates that cannot win, which is most of a cascading write’s cost; it does not change what the compressor can find. The next section shows what each level is worth.

How much does the cascade matter?

How many encodings the compressor may stack is the cascade depth; 3 is the default. I wrote the same file at each depth to see what each level is worth:

Cascade depth Size Encode + write
0 (no cascade) 428.1 MB 0.6 s
1 129.8 MB 1.2 s
2 127.2 MB 1.1 s
3 (default) 127.2 MB 1.0 s

Medians of three runs in one JVM; the three cascading rows are within noise of each other on time. Per column:

Column depth 0 depth 1 depth 2 and 3
symbol 8.5 MB 4 KB 4 KB
open_time, close_time 33.7 MB 4.0 MB 4.0 MB
open (and high, low, close) 34.0 MB 9.0 MB 8.3 MB
volume 34.1 MB 13.4 MB 13.4 MB
trades 33.7 MB 6.7 MB 6.7 MB
ignore 33.7 MB 5 KB 5 KB

What this shows:

What --compact changes

Vortex has a second preset, compact (--compact in the CLI, WriteOptions#withCompact in the library, the same preset as Rust’s compressor). It adds two encodings to the competition for each chunk: Zstandard for text and Pco, a compressor for numbers. It is off by default.

java -jar vortex-cli-all.jar import --compact eod.csv eod-compact.vortex
  Size Encode + write
Vortex, default 127.2 MB 1.2 s
Vortex, --compact 95.2 MB 1.7 s

The file is 25% smaller than the default one and 32% smaller than zstd -19 (140.4 MB), for about 40% more encode time. Both rows were measured as above (one JVM, median of three runs, parsing excluded). In this run the default took 1.2 s, not the 1.0 s of the table above; sizes were identical across two JVMs and times within 0.05 s. I did not measure how fast the compact file is to read.

Per column, against the default file:

Column Default --compact Change
symbol 4 KB 4 KB –7%
open_time, close_time 4.0 MB 2.0 MB –51%
open, high, low, close 8.3 MB each 4.3 MB each –48%
volume 13.4 MB 11.6 MB –14%
taker_base_volume 12.9 MB 11.0 MB –15%
quote_volume, taker_quote_volume 27.1 / 25.7 MB 23.6 / 22.5 MB –13%
trades 6.7 MB 5.3 MB –21%
ignore 5 KB 5 KB 0%

The gains are in the columns that ended in bitpacked; ignore, a constant, cannot shrink. The compact file has no fastlanes.bitpacked or alprd at all, and pco takes their place. For a price, alp still produces integers, but they now go to Pco instead of for and bitpacked, and the column halves (8.3 MB to 4.3 MB). Bit-packing spends the same number of bits on every value of a chunk; Pco models the distribution of the values and entropy-codes them. open_time and close_time halve as well: the 4 MB that sequence could not cover, where one pair ends and the next begins, falls to 2 MB.

What can you do with the file?

Smaller is nice, but the file is also queryable without being unpacked first. For the sake of demo, the most convenient way is DuckDB, which has a Vortex extension (and actually this is where I heard about Vortex for the first time):

INSTALL vortex;
LOAD vortex;

-- the closing price of BTC for one hour, 12:00 to 13:00 UTC on 15 June 2024
SELECT open_time, close
FROM read_vortex('eod.vortex')
WHERE symbol = 'BTCUSDT'
  AND open_time >= 1718452800000 AND open_time < 1718456400000
ORDER BY open_time;

┌───────────────┬──────────┐
│   open_time   │  close   │
│     int64     │  double  │
├───────────────┼──────────┤
│ 1718452800000 │  66328.0 │
│ 1718452860000 │ 66338.39 │
│ 1718452920000 │ 66338.39 │
│      ...      │   ...    │      60 rows in all
│ 1718456340000 │ 66348.01 │
└───────────────┴──────────┘

That takes 0.03 s, DuckDB start-up and extension load included. The same query on the CSV, through read_csv('eod.csv'), takes 0.30 s. DuckDB’s CSV reader is quick and parallel, so that is a fair baseline, and the Vortex file is still about ten times faster, from a file one fifth the size.

Without DuckDB: the CLI

The CLI that ships with vortex-java does the basics. --timing on any command prints how long it took, to stderr so a pipeline still gets only data; the clock starts after the JVM is up, so start-up is not counted. How many rows, and what range does each column cover?

$ java -jar vortex-cli-all.jar count eod.vortex --timing
4216320
elapsed: 33.4 ms
$ java -jar vortex-cli-all.jar stats eod.vortex
column                type                      min              max
symbol                utf8                  ADAUSDT          XRPUSDT
open_time             i64             1704067200000    1735689540000
open                  f64                   0.07434        108258.38
...

The row count is stored in the file’s layout metadata, so count takes 33 ms (60 ms for the whole process) without reading the data. The fair comparison for a CSV is wc -l: 0.44 s for these 633 MB with the file in the page cache, since it must read every byte to find the newlines (and it says 4216321, because it counts the header).

select prints chosen columns, and --where (repeatable, all conditions must hold) keeps only some rows. The same question as above is one command:

$ java -jar vortex-cli-all.jar select eod.vortex open_time close \
    --where "symbol = BTCUSDT" --where "open_time >= 1718452800000" --where "open_time < 1718456400000"
open_time,close
1718452800000,66328.0
1718452860000,66338.39
...                                                          # 60 rows

With --timing it reports about 160 ms (0.18 s for the whole process) and returns the same 60 rows. String values go unquoted in the expression, and the pair is the selective filter, since the file is sorted by pair and then time.

Try it on your own data

Pick a CSV you already know well, import it, run inspect, and read the per-column encodings. The column whose encoding surprises you is the one worth investigating.

Everything above was produced by vortex-java, a pure-Java reader and writer for Vortex. It is checked against the Rust reference in both directions (Rust writes and Java reads, and the reverse), and against 172 real-world datasets from SpiralDB’s Raincloud corpus, each matching its Parquet copy value for value (see the compatibility notes). Real data is where bugs hide, so if you try it on your own files and something decodes wrongly, compresses badly or just surprises you, please open an issue with the file’s inspect output.

  1. Maximilian Kuschewski, David Sauerwein, Adnan Alhomssi and Viktor Leis, BtrBlocks: Efficient Columnar Compression for Data Lakes, SIGMOD 2023. ↩ ↩2

  2. Azim Afroozeh, Leonardo Kuffó and Peter Boncz, ALP: Adaptive Lossless floating-Point Compression, SIGMOD 2024. ↩

  3. Azim Afroozeh and Peter Boncz, The FastLanes Compression Layout, VLDB 2023. ↩
